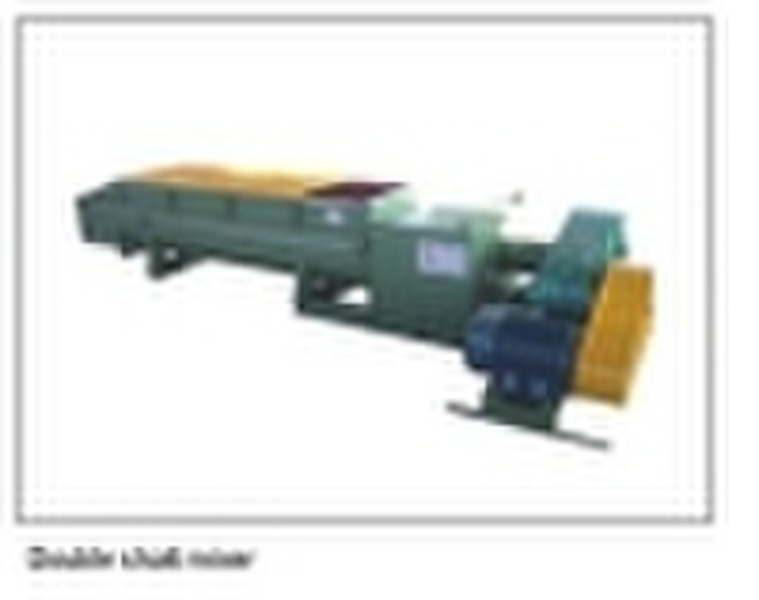

Double shaft mixer ,Brick Making Machinery

Doubt shaft mixer: Item DescriptionUnitModelModelModelModelModelGG3000GG3300GG3600GG4500GG60001Center distance between inlet & outletmm300033003600385051002Auger diametermm 5006006507607603Installed powerkw455590901324Weight of machine, includes motorskg550080001100012800173505Over all dimensionm6.2*2.3*0.96.7*2.2*17.5*2.3*1.18*2.9*1.39.4*3*1.32.general consruction features it is a mixer with double shafts ,each one provided with mixing paddles,and with free discharging ,with drop syeterm. sealed reduction gearbox running in oil bath with power tight protection rings also for the fine powders. all supports of the mixing shafts are on swinging rolling bearings . the pulley that drives machine is provided of rims for v-belts.pneumatic clutch is applied . the resistant structure of machinery is independent from the mixing hopper.the mixing hopper can be replaced. protection liners are on the hoppers. the paddles are revolving and they are made of silicon steel,resistant to the wear.
