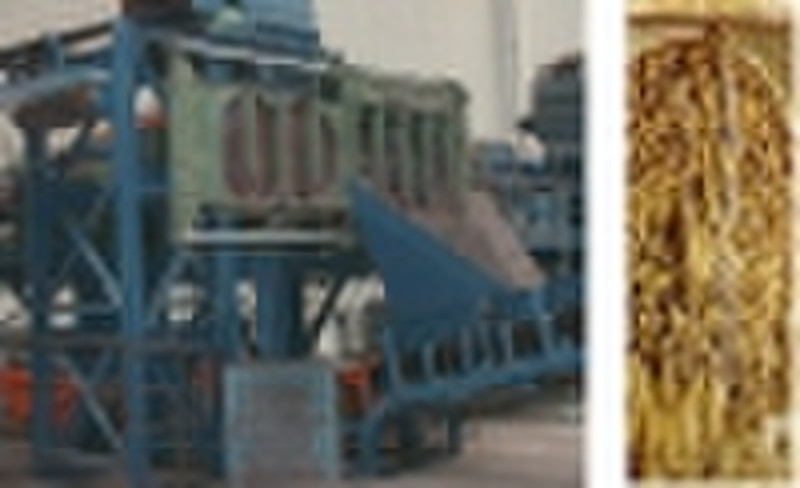

Mixer filter GDF550

1. Dimensional and technical parameter l Grid surface cmq 4,600 l output m³/h 30 ÷ 40 l Installed power kW 60 l Over all dimension mm 4260X3700X1510 l Weight kg 6,800 2.General Construction Features l The mixer filter with frontal grids is always a useful machine in the clay preparation cycle. l Filiform foreign bodies such as roots ,plastic ,etc, are frequently present in the clay. Their elimination is often possible only in the final stages of preparation ,when clay is ground .In these cases only the frontal filter may guarantee their removel. l Clay mixing and homogenizing are important after the primary crushing phases . The mixer with frontal grids is also a very good homogenizer thanks to clay paddling against the grids. l Large surface of the final grids , being the whole surface free clay passing. l Grids with very small holes / slots in order to have a larger useful surface. l The grids plate can be easily changed by a hydraulic cylinder.
